ꯗꯦꯀꯀꯤꯗꯃꯛ ꯒ꯭ꯌꯥꯂꯚꯥꯅꯥꯏꯖ ꯇꯧꯔꯕꯥ ꯀꯦꯔꯤꯌꯔ ꯕꯣꯜꯇꯁꯤꯡ .
ꯁ꯭ꯠꯌꯥꯟꯗꯥꯔꯗ: ꯑꯥꯏ.ꯑꯦꯁ.ꯑꯣ.ꯒꯤ 8678
ꯊ꯭ꯔꯦꯗ ꯃꯈꯜ: ꯑꯀꯪꯕꯥ ꯊ꯭ꯔꯦꯗ, ꯃꯄꯨꯡ ꯐꯥꯕꯥ ꯊ꯭ꯔꯦꯗ
ꯄꯣꯠꯂꯝ: ꯗꯦꯛꯀꯤꯗꯃꯛ ꯒ꯭ꯌꯥꯂꯚꯥꯅꯥꯏꯖꯗ ꯀꯦꯔꯤꯌꯔ ꯕꯣꯜꯇꯁꯤꯡ
ꯃꯁꯤꯗꯁꯨ ꯃꯃꯤꯡ ꯊꯣꯅꯈꯤ: ꯒ꯭ꯌꯥꯂꯚꯥꯅꯥꯏꯖꯗ ꯀꯦꯔꯤꯌꯔ ꯕꯣꯜꯇꯁꯤꯡ
ꯃꯆꯥꯛ: ꯀꯥꯔꯕꯣꯟ ꯁ꯭ꯇꯤꯜ .
ꯄ꯭ꯔꯣꯄꯔꯇꯤ ꯀ꯭ꯂꯥꯁ: ꯳.꯶~꯱꯲.꯹.
ꯗꯥꯏꯃꯦꯠꯔꯤꯛ: ꯑꯦꯃ꯶, ꯑꯦꯃ꯸, ꯑꯦꯃ꯱꯰, ꯑꯦꯃ꯱꯲, ꯑꯦꯃ꯱꯶, ꯑꯦꯃ꯲꯰꯫
ꯐꯤꯅꯤꯁ: ꯄ꯭ꯂꯦꯟ, ꯕ꯭ꯂꯦꯛ ꯑꯣꯛꯁꯥꯏꯗ, ꯖꯤꯉ꯭ꯛ ꯄ꯭ꯂꯦꯠ, ꯍꯣꯠ ꯗꯤꯞꯄꯤꯡ ꯒ꯭ꯌꯥꯂꯚꯥꯅꯥꯏꯖꯗ, ꯑꯣꯛꯁꯤꯖꯦꯟ, ꯗꯥꯛꯔꯣꯃꯦꯠ, ꯐꯣꯁꯐꯦꯇꯤꯡ, ꯀꯦꯗꯃꯤꯌꯝ ꯏꯂꯦꯛꯠꯔꯣꯞꯂꯦꯠ, ꯅꯤꯀꯜ ꯄ꯭ꯂꯦꯠ ꯇꯧꯕꯥ
ꯍꯦꯗ ꯃꯈꯜ: ꯒꯣꯜꯗ ꯍꯦꯗ
ꯍꯦꯗꯀꯤ ꯑꯀꯨꯞꯄꯥ ꯃꯔꯣꯂꯁꯤꯡ: ꯁꯣꯔꯠ ꯁ꯭ꯛꯕꯥꯔ ꯅꯦꯛ ꯌꯥꯑꯣꯕꯥ
ꯑꯂꯇꯔꯅꯦꯇꯤꯕ ꯁ꯭ꯇꯦꯟꯗꯔꯗ: DIN 603,ISO 8677,ISO 8678,ansi/asme b 18.5,ansi/asme b 18.5.2.3m
ꯑꯦꯝ.ꯑꯣ.ꯀ꯭ꯌꯨ.: ꯱꯰꯰꯰ꯀꯤ.ꯒ꯭ꯔꯥ.
ꯂꯤꯗ ꯇꯥꯏꯝ: ꯅꯨꯃꯤꯠ ꯳꯰ꯗꯒꯤ ꯶꯰ ꯐꯥꯑꯣꯕꯥ
ꯄꯣꯠꯊꯣꯛ ꯄꯨꯊꯣꯀꯄꯥ .
ꯑꯦ.ꯋꯥꯏ.ꯑꯦ.ꯒꯤ ꯐꯥꯁ꯭ꯇꯦꯅꯔꯁ (ꯑꯩꯆ.ꯏ.ꯕꯤ.ꯏ.) ꯀꯣ., ꯂꯤꯃꯤꯇꯦꯗ ꯑꯁꯤ ꯆꯥꯏꯅꯥꯗꯥ ꯂꯩꯕꯥ ꯗꯦꯀꯀꯤꯗꯃꯛꯇꯥ ꯒ꯭ꯌꯥꯂꯚꯥꯅꯥꯏꯖ ꯇꯧꯔꯕꯥ ꯀꯦꯔꯤꯌꯔ ꯕꯣꯜꯇꯁꯤꯡꯒꯤ ꯈ꯭ꯕꯥꯏꯗꯒꯤ ꯑꯦꯛꯁꯄꯔꯤꯌꯦꯟꯁ ꯂꯩꯕꯥ ꯃꯦꯟꯌꯨꯐꯦꯀꯆꯔꯔꯁꯤꯡ ꯑꯃꯁꯨꯡ ꯁꯞꯂꯥꯏꯌꯔꯁꯤꯡꯒꯤ ꯃꯔꯛꯇꯥ ꯑꯃꯅꯤ꯫ ꯑꯩꯈꯣꯌꯒꯤ ꯐꯦꯛꯇꯔꯤꯗꯒꯤ ꯃꯐꯝ ꯑꯁꯤꯗꯥ ꯆꯥꯏꯅꯥꯗꯥ ꯁꯥꯕꯥ ꯗꯦꯀꯀꯤꯗꯃꯛ ꯑꯋꯥꯡꯕꯥ ꯊꯥꯛꯀꯤ ꯒ꯭ꯌꯥꯂꯚꯥꯅꯥꯏꯖꯗ ꯀꯦꯔꯤꯌꯔ ꯕꯣꯜꯇꯁꯤꯡ ꯂꯧꯕꯤꯌꯨ꯫ ꯃꯃꯜ ꯀꯟꯁꯂꯇꯦꯁꯅꯒꯤꯗꯃꯛꯇꯥ ꯑꯩꯈꯣꯌꯒꯥ ꯄꯥꯎ ꯐꯥꯑꯣꯅꯕꯤꯌꯨ꯫
ꯀꯁ꯭ꯇꯃꯁ ꯐꯥꯁ꯭ꯇꯦꯅꯤꯡ ꯁꯣꯂꯨꯁꯅꯁꯤꯡꯒꯤ ꯃꯥꯂꯦꯃꯒꯤ ꯑꯣꯏꯕꯥ ꯁꯞꯂꯥꯏꯌꯔ ꯑꯃꯥ ꯑꯣꯏꯅꯥ, ꯑꯦ.ꯋꯥꯏ.ꯑꯦ.ꯒꯤ ꯁꯔꯕꯤꯁ ꯄ꯭ꯔꯣꯁꯦꯁ ꯑꯁꯤꯁꯨ ꯑꯥꯌꯥꯒꯤ ꯄꯣꯠꯊꯣꯀꯁꯤꯡꯒꯥ ꯆꯥꯡꯗꯝꯅꯕꯗꯥ ꯀꯁ꯭ꯇꯃꯔꯁꯤꯡꯒꯥ ꯅꯛꯅꯅꯥ ꯂꯩ꯫ ꯁꯔꯚꯤꯁꯁꯤꯡ ꯑꯁꯤ ꯇꯨꯡ ꯏꯟꯅꯕꯒꯤ ꯃꯊꯧ ꯇꯥꯕꯁꯤꯡ ꯑꯗꯨ ꯐꯣꯡꯗꯣꯀꯄꯗꯒꯤ, ꯑꯦ.ꯋꯥꯏ.ꯑꯦ.ꯅꯥ ꯈꯨꯗꯛꯇꯥ ꯀꯁ꯭ꯇꯃꯔꯁꯤꯡꯅꯥ ꯂꯥꯀꯄꯥ ꯐꯥꯁ꯭ꯇꯦꯅꯤꯡ ꯄ꯭ꯔꯣꯕ꯭ꯂꯦꯝ ꯑꯃꯠꯇꯥ ꯁꯣꯜꯕ ꯇꯧꯕꯗꯥ ꯃꯇꯦꯡ ꯄꯥꯡꯅꯕꯥ, ꯀꯁ꯭ꯇꯃꯔꯁꯤꯡꯒꯤ ꯋꯥꯈꯜ ꯋꯥꯕꯥ ꯑꯗꯨ ꯀꯣꯀꯍꯟꯅꯕꯥ ꯍꯣꯠꯅꯕꯥ ꯑꯃꯠꯇꯥ ꯌꯥꯑꯣꯔꯣꯏ꯫
ꯄꯣꯠꯊꯣꯛ ꯑꯁꯤꯒꯤ ꯃꯇꯥꯡꯗꯥ ꯃꯌꯦꯛ ꯁꯦꯡꯅꯥ ꯇꯥꯀꯄꯥ
ꯄꯣꯠꯊꯣꯛꯀꯤ ꯃꯃꯤꯡ | ꯗꯦꯀꯀꯤꯗꯃꯛ ꯒ꯭ꯌꯥꯂꯚꯥꯅꯥꯏꯖ ꯇꯧꯔꯕꯥ ꯀꯦꯔꯤꯌꯔ ꯕꯣꯜꯇꯁꯤꯡ . |
ꯃꯗꯨꯁꯨ ꯃꯃꯤꯡ ꯊꯣꯅꯈꯤ | ꯒ꯭ꯌꯥꯂꯚꯥꯅꯥꯏꯖ ꯇꯧꯔꯕꯥ ꯀꯦꯔꯤꯌꯔ ꯕꯣꯜꯇꯁꯤꯡ . |
ꯃꯆꯥꯛ | ꯀꯥꯔꯕꯣꯟ ꯁ꯭ꯇꯤꯜ ꯑꯁꯤ ꯑꯦꯟ. |
ꯊꯥꯛ | ꯑꯥꯏꯁꯣ 8678 ꯑꯃꯁꯨꯡ ꯑꯥꯏ.ꯑꯦꯁ.ꯑꯣ. |
| ꯑꯂꯇꯔꯅꯦꯇꯤꯕ ꯁ꯭ꯇꯦꯟꯗꯔꯗ | DIN 603,iso 8677,iso 8678,ansi/asme b 18.5,ansi/asme b 18.5.2.3m |
| ꯄ꯭ꯔꯣꯄꯔꯇꯤ ꯀ꯭ꯂꯥꯁꯇꯥ ꯂꯩꯕꯥ ꯌꯨ.ꯑꯦꯁ. | 3.6~12.9 |
ꯗꯥꯏꯃꯦꯠꯔꯤꯛ ꯑꯣꯏꯕꯥ . | M6, M8, M10, M12, M16, M20 |
ꯂꯣꯏꯁꯤꯟꯕ | ꯄ꯭ꯂꯦꯟ, ꯕ꯭ꯂꯦꯛ ꯑꯣꯛꯁꯥꯏꯗ, ꯖꯤꯉ꯭ꯛ ꯄ꯭ꯂꯦꯠ, ꯍꯣꯠ ꯗꯤꯞꯄꯤꯡ ꯒ꯭ꯌꯥꯂꯚꯥꯅꯥꯏꯖꯗ, ꯑꯣꯛꯁꯤꯖꯦꯟ, ꯗꯥꯛꯔꯣꯃꯦꯠ, ꯐꯣꯁꯐꯦꯇꯤꯡ, ꯀꯦꯗꯃꯤꯌꯝ ꯏꯂꯦꯛꯠꯔꯣꯞꯂꯦꯠ, ꯅꯤꯀꯜ ꯄ꯭ꯂꯦꯠ ꯇꯧꯕꯥ |
ꯍꯦꯗ ꯇꯥꯏꯞ ꯴. | ꯔꯥꯎꯟꯗ ꯍꯦꯗ ꯴. |
ꯍꯦꯗꯀꯤ ꯑꯀꯨꯞꯄꯥ ꯃꯔꯣꯂꯁꯤꯡ . | ꯁꯣꯔꯠ ꯁ꯭ꯛꯕꯥꯔ ꯅꯦꯛꯀꯥ ꯂꯣꯌꯅꯅꯥ . |
ꯊ꯭ꯔꯦꯗ ꯃꯈꯜ | ꯑꯀꯪꯕꯥ ꯊ꯭ꯔꯦꯗ, ꯃꯄꯨꯡ ꯐꯥꯕꯥ ꯊ꯭ꯔꯦꯗ |
ꯗꯥꯏꯃꯦꯟꯁꯅꯁꯤꯡꯒꯤ ꯇꯦꯕꯜ .
| ꯁ꯭ꯛꯔꯨ ꯊ꯭ꯔꯦꯗ | M6 | M8 | M10 | M12 | M16 | M20 | |
| d | |||||||
| P | ꯍꯨꯟꯅꯕ | 1 | 1.25 | 1.5 | 1.75 | 2 | 2.5 |
| b | l ꯱꯲꯵ꯗꯒꯤ ꯇꯥꯕꯥ ꯅꯠꯔꯒꯥ ꯃꯥꯟꯅꯕꯥ . | 18 | 22 | 26 | 30 | 38 | 46 |
| 125＜l ꯲꯰꯰ꯗꯒꯤ ꯇꯥꯕꯥ ꯅꯠꯠꯔꯒꯥ ꯃꯥꯟꯅꯕꯥ . | - | - | - | - | 44 | 52 | |
| dk | ꯃꯦꯛꯁ ꯳. | 14.2 | 18 | 22.3 | 26.6 | 35 | 43 |
| ds | ꯃꯦꯛꯁ ꯳. | 6 | 8 | 10 | 12 | 16 | 20 |
| e | ꯃꯤꯟ ꯃꯤꯟ . | 7.64 | 10.2 | 12.8 | 15.37 | 20.57 | 25.73 |
| k1 | ꯃꯦꯛꯁ ꯳. | 3 | 3 | 4 | 4 | 5 | 5 |
| ꯃꯤꯟ ꯃꯤꯟ . | 2.4 | 2.4 | 3.2 | 3.2 | 4.2 | 4.2 | |
| k | ꯃꯦꯛꯁ ꯳. | 3.6 | 4.8 | 5.8 | 6.8 | 8.9 | 10.9 |
| ꯃꯤꯟ ꯃꯤꯟ . | 3 | 4 | 5 | 6 | 8 | 10 | |
| s | ꯃꯦꯛꯁ ꯳. | 6.48 | 8.58 | 10.58 | 12.7 | 16.7 | 20.84 |
| ꯃꯤꯟ ꯃꯤꯟ . | 5.88 | 7.85 | 9.85 | 11.82 | 15.82 | 19.79 | |

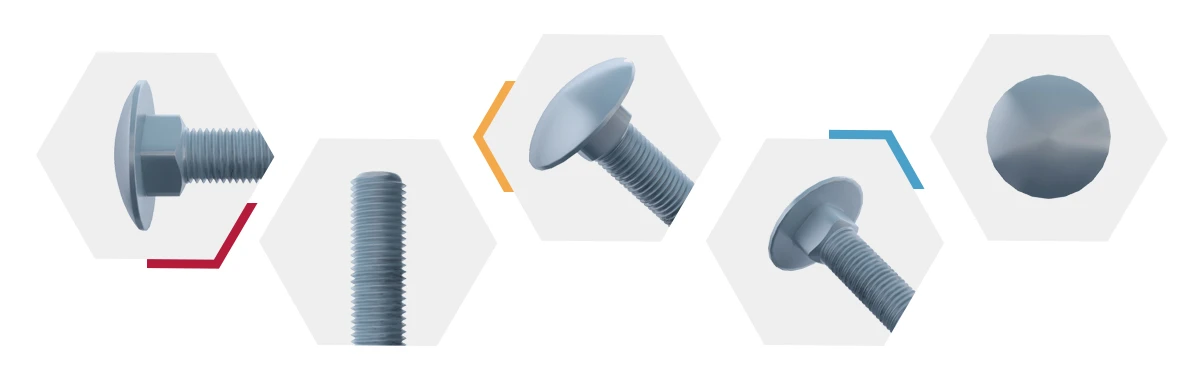

ꯄ꯭ꯔꯗꯛꯇꯀꯤ ꯑꯀꯨꯞꯄꯥ ꯃꯔꯣꯂꯁꯤꯡ
ꯄꯣꯠꯊꯣꯛ ꯑꯁꯤꯒꯤ ꯀꯥꯟꯅꯕꯥ .
ꯗꯦꯀꯀꯤꯗꯃꯛ ꯒ꯭ꯌꯥꯂꯚꯥꯅꯥꯏꯖ ꯇꯧꯔꯕꯥ ꯀꯦꯔꯤꯌꯔ ꯕꯣꯜꯇꯁꯤꯡꯒꯤ ꯀꯥꯟꯅꯕꯥ
1. ꯃꯔꯨꯑꯣꯏꯅꯥ ꯂꯧꯎ-ꯁꯤꯡꯎꯒꯤ ꯊꯕꯛꯇꯥ ꯌꯥꯝꯅꯥ ꯂꯥꯏꯅꯥ ꯁꯤꯖꯤꯟꯅꯕꯥ ꯃꯇꯃꯗꯥ ꯀꯦꯔꯤꯌꯔ ꯕꯣꯂꯁꯤꯡ ꯑꯁꯤ ꯃꯍꯧꯁꯥꯅꯥ ꯁꯤꯖꯤꯟꯅꯩ .
2. ꯒ꯭ꯌꯥꯂꯚꯥꯅꯥꯏꯖ ꯇꯧꯔꯕꯥ ꯀꯦꯔꯤꯌꯔ ꯕꯣꯂꯁꯤꯡ ꯑꯁꯤ ꯑꯍꯥꯅꯕꯥ ꯃꯃꯂꯗꯥ ꯍꯦꯟꯅꯥ ꯅꯦꯝꯃꯤ꯫
3. ꯀꯣꯜꯗ ꯔꯣꯜꯗ ꯁ꯭ꯇꯤꯂꯒꯤ ꯒ꯭ꯌꯥꯂꯚꯥꯅꯥꯏꯖ ꯇꯧꯔꯕꯥ ꯀꯣꯇꯤꯡ, ꯍꯣꯠ ꯗꯤꯞ ꯒ꯭ꯌꯥꯂꯚꯥꯅꯥꯏꯖꯤꯡ ꯄ꯭ꯔꯣꯁꯦꯁ ꯁꯤꯖꯤꯟꯅꯗꯨꯅꯥ ꯃꯁꯤꯅꯥ ꯀꯩꯗꯧꯉꯩꯗꯥ ꯁꯣꯟꯊꯕꯥ ꯅꯠꯠꯔꯒꯥ ꯀ꯭ꯔꯦꯛ ꯇꯧꯕꯥ ꯉꯃꯍꯜꯂꯣꯏ꯫
4. ꯍꯣꯠ ꯗꯤꯞ ꯒ꯭ꯌꯥꯂꯚꯥꯅꯥꯏꯖꯗ ꯀꯦꯔꯤꯌꯔ ꯕꯣꯜꯇꯁꯤꯡ ꯑꯁꯤ ꯃꯤꯠꯅꯥ ꯐꯖꯅꯥ ꯑꯦꯁꯦꯁ ꯇꯧꯏ, ꯑꯃꯁꯨꯡ ꯁꯤꯝꯄꯜ ꯅꯟ-ꯃꯥꯡꯍꯟ ꯇꯥꯀꯍꯅꯕꯥ ꯌꯥꯕꯥ ꯊꯤꯀꯅꯦꯁ ꯇꯦꯁ꯭ꯠ ꯇꯧꯕꯒꯤ ꯃꯑꯣꯡꯁꯤꯡ ꯁꯤꯖꯤꯟꯅꯕꯥ ꯌꯥꯏ꯫
꯵.ꯒꯥꯂꯚꯥꯅꯥꯏꯖ ꯇꯧꯔꯕꯥ ꯀꯣꯇꯤꯡ ꯀꯦꯔꯤꯌꯔ ꯕꯣꯜꯇꯁꯤꯡꯒꯤ ꯄꯨꯟꯁꯤ ꯑꯃꯁꯨꯡ ꯄꯔꯐꯣꯃꯦꯟꯁ ꯑꯁꯤ ꯊꯥꯖꯕꯥ ꯌꯥꯕꯥ ꯑꯃꯁꯨꯡ ꯊꯥꯖꯕꯥ ꯌꯥꯕꯥ ꯑꯣꯏ꯫
6. ꯒ꯭ꯌꯥꯂꯚꯥꯅꯥꯏꯖꯦꯁꯟ ꯍꯥꯌꯕꯁꯤ ꯃꯇꯝ ꯆꯥꯗꯅꯥ ꯃꯩ ꯆꯥꯀꯄꯥ ꯑꯃꯁꯨꯡ ꯀꯣꯔꯣꯁꯤꯟ ꯊꯤꯡꯅꯕꯥ ꯀꯦꯔꯤꯌꯔ ꯕꯣꯂꯁꯤꯡꯗꯥ ꯄ꯭ꯔꯣꯇꯦꯛꯇꯤꯚ ꯀꯣꯇꯤꯡ ꯑꯃꯥ ꯁꯤꯖꯤꯟꯅꯕꯒꯤ ꯊꯧꯑꯣꯡꯅꯤ꯫
ꯀ꯭ꯕꯥꯂꯤꯇꯤ ꯏꯟꯁꯄꯦꯛꯁꯟ ꯇꯧꯕꯥ
ꯄꯦꯀꯦꯖꯤꯡ ꯑꯃꯁꯨꯡ ꯀꯟꯇꯦꯅꯔ ꯂꯣꯗꯤꯡ ꯇꯧꯕꯥ
ꯁꯤꯖꯤꯟꯅꯕꯒꯤ ꯁꯤꯅꯥꯔꯤꯑꯣꯁꯤꯡ .
ꯀꯔꯤꯒꯤꯗꯃꯛ ꯑꯌꯥ ꯈꯅꯕꯒꯦ?
ꯑꯦ.ꯋꯥꯏ.ꯑꯦ.ꯅꯥ ꯆꯍꯤ ꯈꯨꯗꯤꯡꯒꯤ ꯃꯥꯂꯦꯝ ꯄꯨꯝꯕꯗꯒꯤ 1000+ ꯃꯦꯝꯕꯔꯁꯤꯡꯗꯥ ꯑꯦꯛꯁꯛꯂꯨꯁꯤꯕ ꯁꯔꯕꯤꯁꯁꯤꯡ ꯄꯤꯔꯤ, ꯑꯈꯟꯅꯕꯥ ꯆꯦꯟ ꯁꯔꯚꯤꯁ ꯁꯣꯂꯨꯁꯟ ꯁꯤꯁ꯭ꯇꯦꯝ ꯑꯃꯥ ꯂꯩꯔꯒꯥ, ꯑꯗꯣꯝꯅꯥ ꯑꯦꯛꯁꯛꯂꯨꯁꯤꯕ ꯐꯥꯁ꯭ꯇꯦꯅꯤꯡ ꯁꯣꯂꯨꯁꯟ ꯐꯪꯅꯕꯒꯤꯗꯃꯛ ꯃꯥꯎꯁ ꯑꯗꯨ ꯀ꯭ꯂꯤꯛ ꯇꯧꯕꯥ ꯈꯛꯇꯃꯛ ꯃꯊꯧ ꯇꯥꯏ ꯑꯃꯁꯨꯡ-ꯗꯣꯔ ꯁꯔꯚꯤꯁꯁꯤꯡꯗꯥ ꯗꯣꯔ- ꯅꯨꯡꯉꯥꯏꯅꯕꯥ ꯈꯛꯇꯃꯛ ꯃꯊꯧ ꯇꯥꯏ꯫
